Usage

💡 Tip: Overmind has a source called stdlib which allows you to run query's without entering any source credentials returning publicly available information.

Getting started​

Once you have created an account you will be able to use Explore on public data or your own data if you have configured a AWS or K8s source.

Overmind explore UI

The top bar provides access to the main functions of Explore. This is where you can input your method, query, type ect.

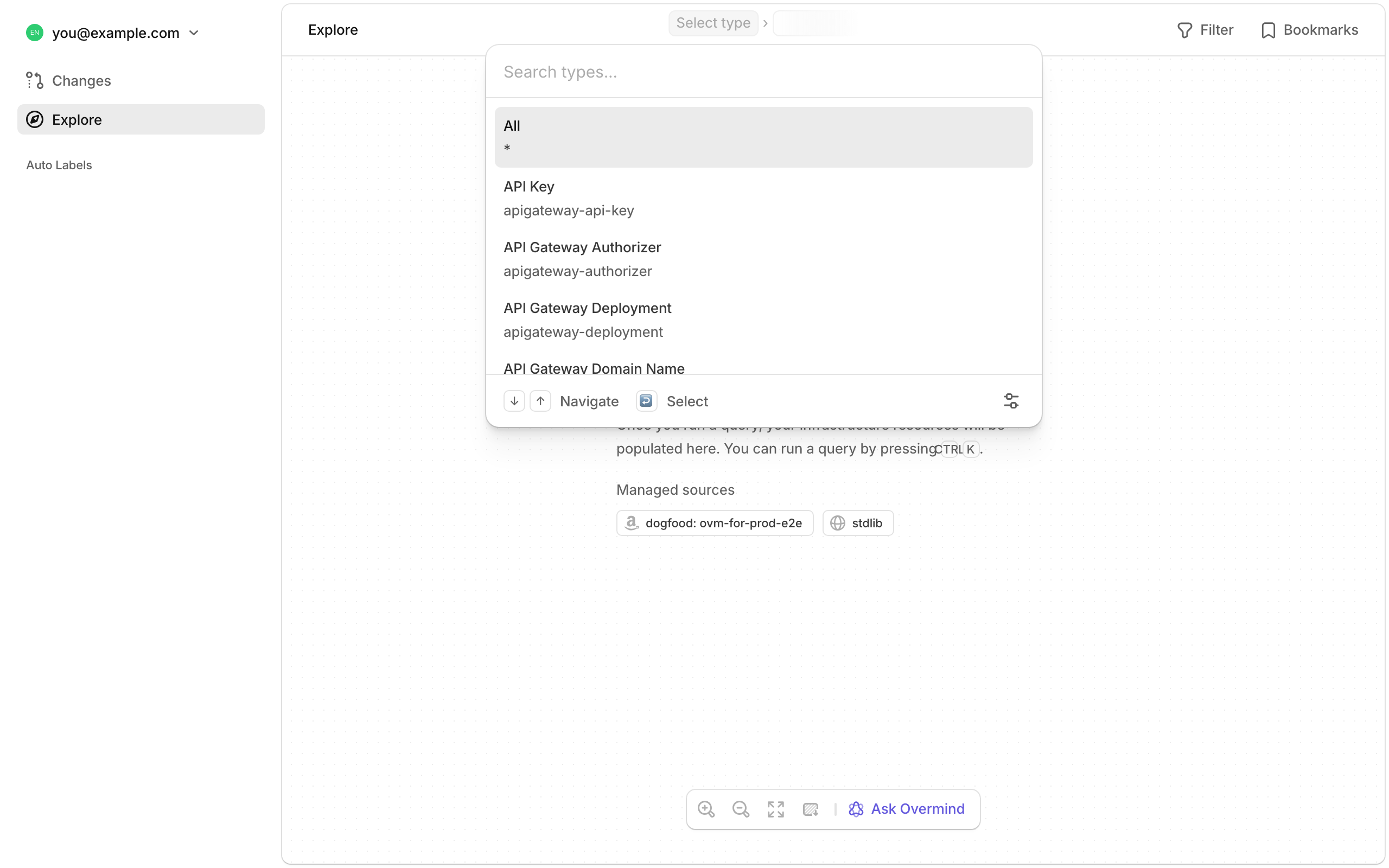

Overmind Explore search

You will only see the available item types that you are able to query. If you do not have a AWS or K8s source configured then you will not see / be able to query these. By default you will always see stdlib.

Item requests​

Are made up of 5 different components:

1. Method​

GET: This takes a single unique query and should only return a single item. If an item matching the parameter passed doesn't exist the server should fail

LIST: This takes no query (or ignores it) and should return all items that it can find

SEARCH: This takes a non-unique query which is designed to be used as a Search search term. It should return some number of items (or zero) which match the query by any string. Intended to be used by autocomplete in the GUI and therefore places extra weight on prefixes however will also perform free-text and fuzzy matching too

2. Query​

What query should be passed to that method. This is only available for GET & Search queries. For example if you wanted to return a specific ec2-instance you would query the instanceId

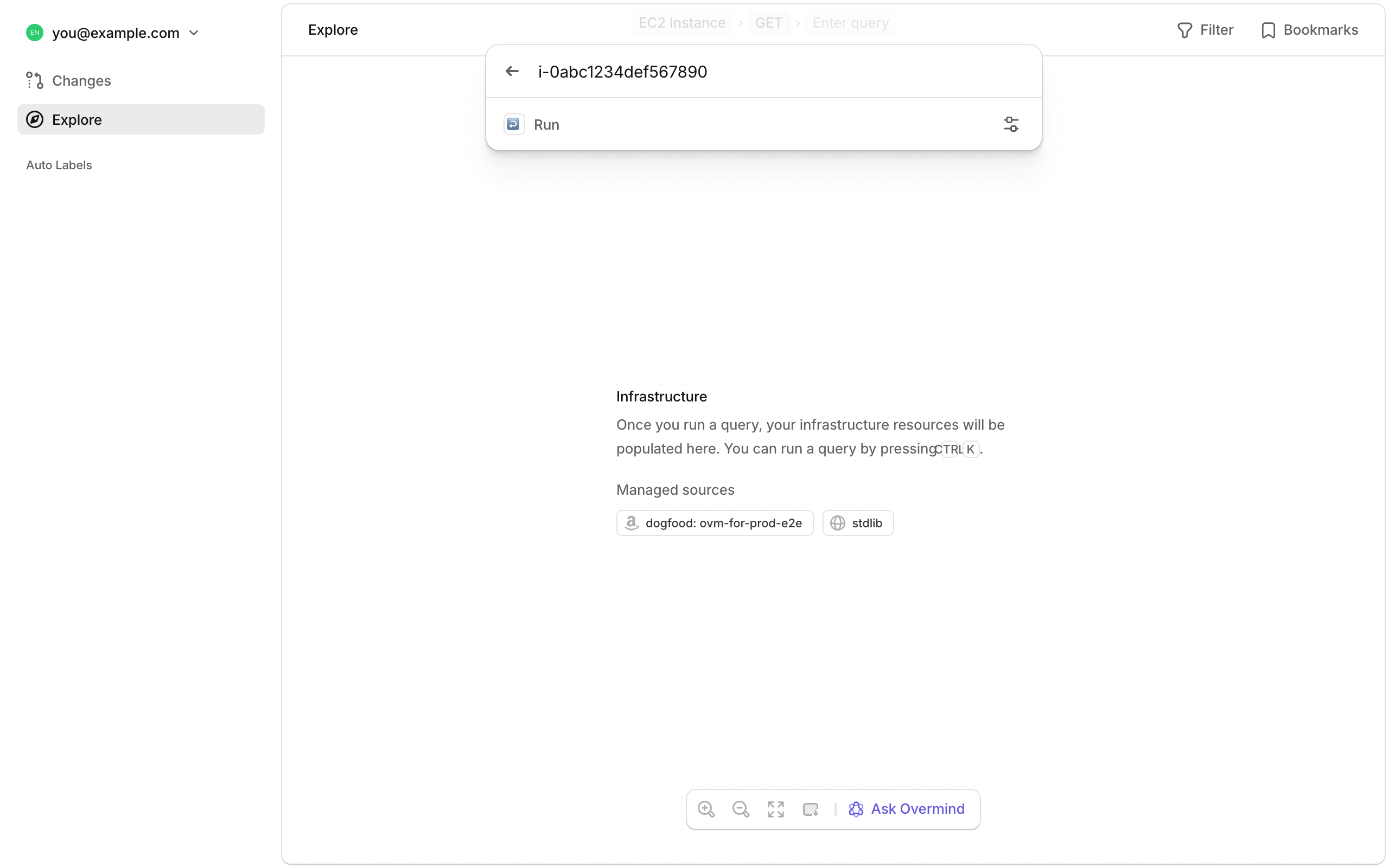

query specific ec2 instance by id

3. Type​

The type of item to search for. Can be

* to query all users

global to query globally

4. Scope​

The scope within which the item is unique. Item uniqueness is determined by the combination of type and uniqueAttribute value. However it is possible for the same item to exist in many scopes. There is not formal definition for what a scope should be other than the fact that it should be somewhat descriptive and should ensure item uniqueness

How deeply to link items. A value of 0 will mean that items are not linked. To resolve linked items "infinitely" simply set this to a high number, with the highest being 4,294,967,295. While this isn't truly infinite, chances are that it is effectively the same, think six degrees of separation etc. The scope for which we are requesting.

To query all scopes use the the wildcard '*'.

Example: http GET query​

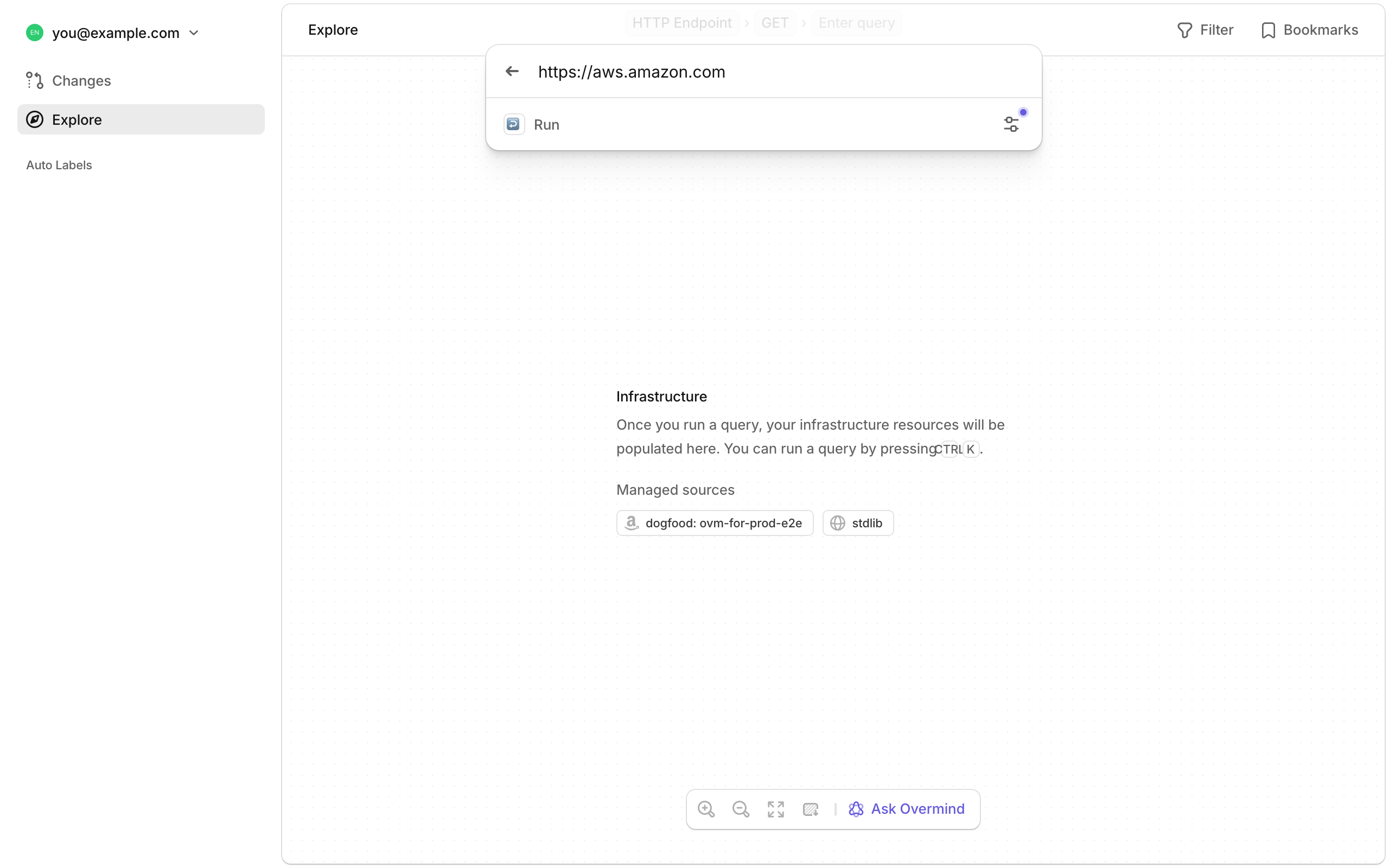

AWS query in top bar

In this example we have used the built-in stdlib source to run a get query on the domain https://aws.amazon.com. Lets take a look at the results:

Overmind Explore AWS Graph

Example: ec2-security-group LIST query​

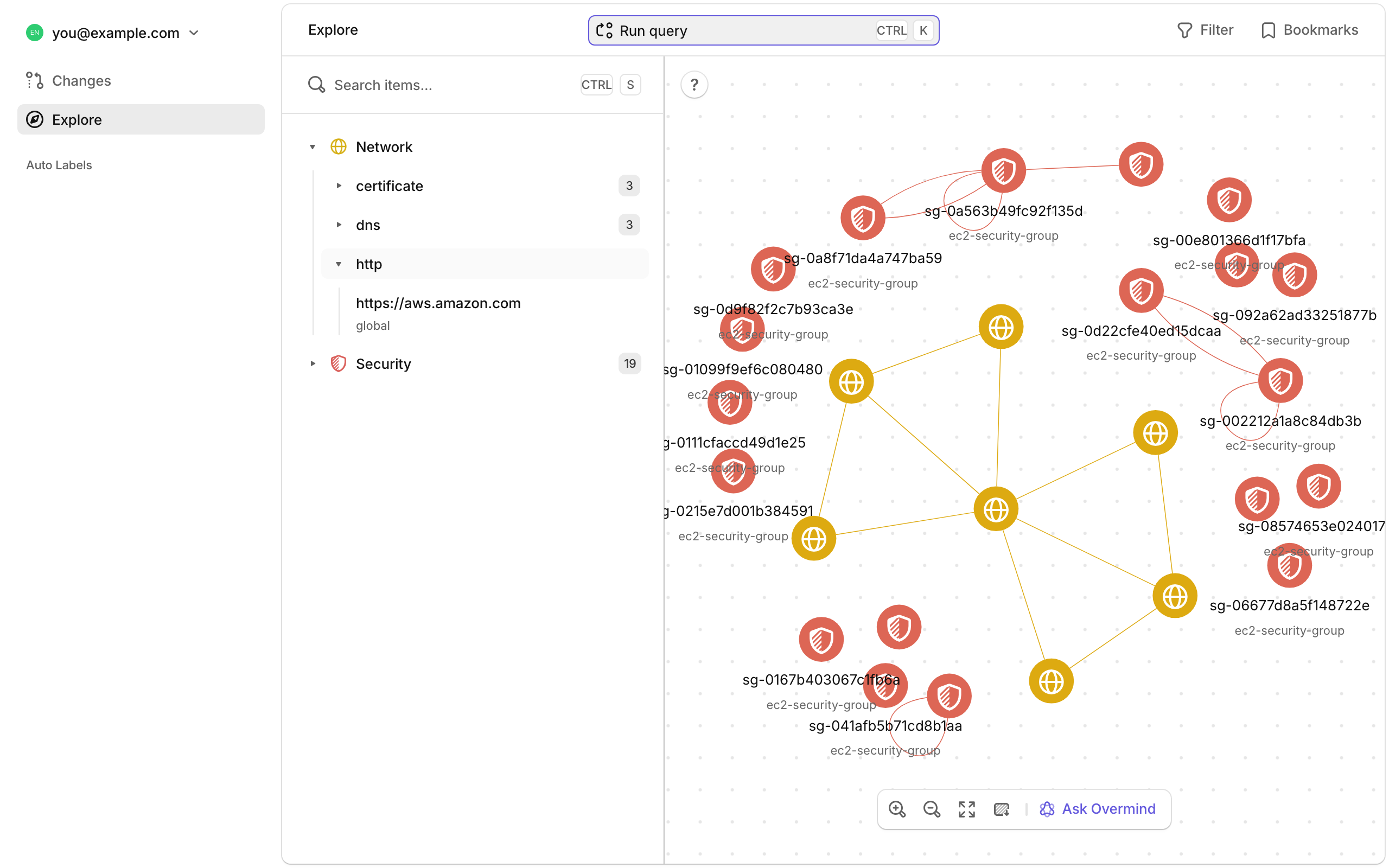

Overmind Explore security group

In this example we have used a configured AWS source to run a list query on the item type ec2-security-group. In AWS this corresponds to security groups.
